Welded Types of Cylinder
Welded Types of Hydraulic Cylinders Manufacturers in Pune
Welded Types of Hydraulic Cylinders Suppliers in Pune
Looking for a reliable Welded Types of Hydraulic Cylinders in Pune? We are a leading manufacturer, supplier, and dealer of Welded Types of Hydraulic Cylinders designed to deliver high-pressure performance for industrial and mobile applications.Delight Hydraulic india.Tottaly Professional With Product Quality. We have Trained workers who are ready to provide 24/7 support. strict supervision of our skilled professionals. Whether you're in Pune,Maharashtra,India, we ensure fast delivery and on-site support for bulk orders.
Welded hydraulic cylinders are widely used in heavy-duty industrial and mobile applications because of their compact design, high strength, and durability. Unlike tie-rod cylinders, welded cylinders have end caps that are welded directly to the barrel, creating a rigid and high-strength structure capable of handling high pressure and harsh working environments.
Welded cylinders are commonly used in construction equipment, agricultural machinery, mining machines, marine systems, and industrial automation where reliability and strength are critical.
What Is a Welded Hydraulic Cylinder?
A welded hydraulic cylinder is a type of hydraulic cylinder where the barrel is permanently welded to the end caps instead of being held together by external tie rods.
- ✅ Higher pressure resistance
- ✅ Compact overall size
- ✅ Improved structural integrity
- ✅ Better resistance to vibration and shock

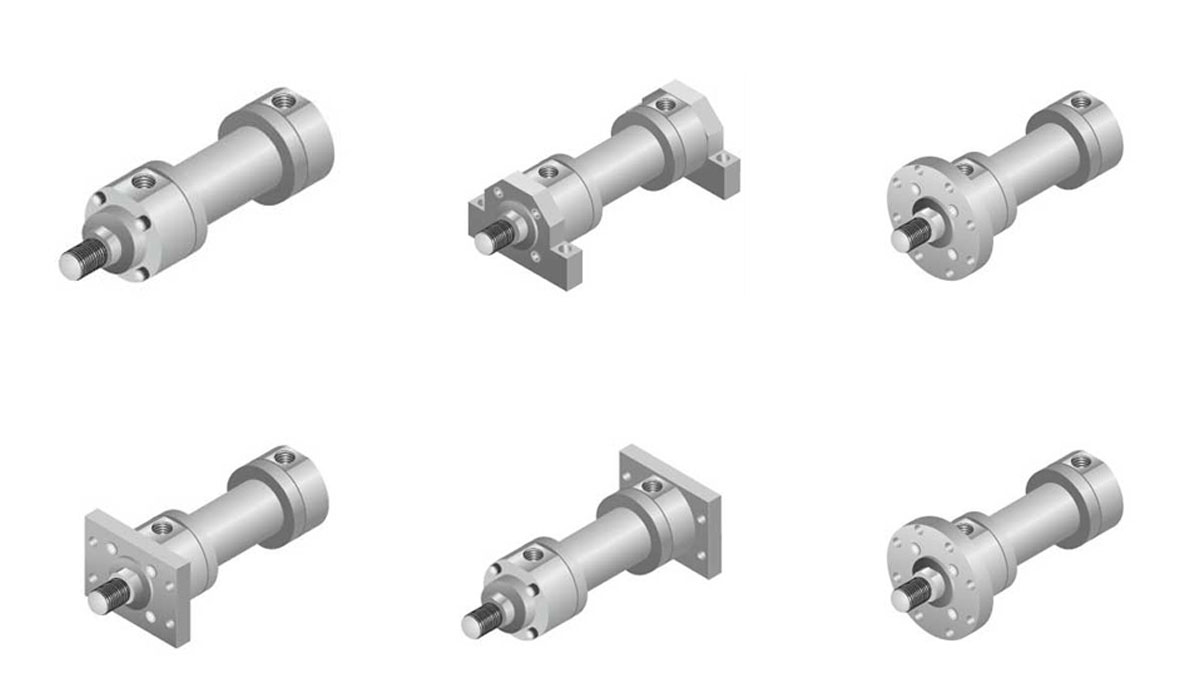

Main Welded Types of Hydraulic Cylinders
Welded hydraulic cylinders are classified based on design, mounting style, and application requirements. Below are the most common welded cylinder types used across industries.
1. Welded Single-Acting Hydraulic Cylinder
A single-acting welded hydraulic cylinder uses hydraulic pressure to move the piston in one direction only. The return stroke occurs through gravity, load force, or a spring mechanism.
Features:- ✅ One hydraulic port
- ✅ Simple internal design
- ✅ Cost-effective solution
- ✅ Hydraulic jacks
- ✅ Dump trucks
- ✅ Lifting platforms
- ✅ Press machines
- ✅ Easy maintenance
- ✅ Energy efficient
- ✅ Reliable for vertical load systems
2. Welded Double-Acting Hydraulic Cylinder
A double-acting welded cylinder applies hydraulic pressure in both directions — extension and retraction — allowing precise and controlled movement.
Features:- ✅ Two hydraulic ports
- ✅ Controlled motion in both directions
- ✅ Strong welded barrel construction
- ✅ Excavators
- ✅ Agricultural tractors
- ✅ Industrial machinery
- ✅ Material handling equipment
- ✅ Precise control
- ✅ Faster cycle time
- ✅ Suitable for heavy-duty applications
3. Welded Telescopic Hydraulic Cylinder
Telescopic welded cylinders consist of multiple nested stages that extend sequentially to achieve a long stroke length within a compact retracted size.
Types:- ✅ Single-Acting Telescopic Cylinder
- ✅ Double-Acting Telescopic Cylinder
- ✅ Dump trucks
- ✅ Construction vehicles
- ✅ Waste management systems
- ✅ Agricultural trailers
- ✅ Long extension stroke
- ✅ Space-saving design
- ✅ High lifting capacity
4. Welded Mill-Type Hydraulic Cylinder
Mill-type welded cylinders are engineered for extreme pressure and continuous heavy-duty industrial applications.
- ✅ Thick barrel walls
- ✅ Large piston rod diameter
- ✅ High-pressure sealing system
- ✅ Replaceable gland and piston components
- ✅ Steel mills
- ✅ Mining equipment
- ✅ Heavy forging presses
- ✅ Power plants
5. Welded Compact Hydraulic Cylinder
Compact welded hydraulic cylinders are designed for applications where installation space is limited.
- ✅ Short retracted length
- ✅ Lightweight design
- ✅ Easy installation
- ✅ Ideal for mobile and automated systems
6. Welded Tie-Rod Replacement Cylinder
These welded cylinders are designed as direct replacements for traditional tie-rod cylinders in demanding environments.
- ✅ Strong welded body
- ✅ Higher pressure handling
- ✅ Better vibration resistance
- ✅ Longer service life
Advantages of Welded Hydraulic Cylinders
- ✅ Strong and compact construction
- ✅ High pressure capability
- ✅ Resistance to shock and vibration
- ✅ Custom mounting options
- ✅ Ideal for mobile and industrial equipment
How to Choose the Right Welded Cylinder
- ✅ Operating pressure rating
- ✅ Required stroke length
- ✅ Load capacity
- ✅ Mounting compatibility
- ✅ Environmental conditions
- ✅ Application type (lifting, control, long reach)
Contact Us for Welded Types of Hydraulic Cylinders Pune
Welded hydraulic cylinders are essential components in modern hydraulic systems. Their compact design, robust construction, and high-pressure capability make them ideal for demanding industrial and mobile applications.
From single-acting and double-acting cylinders to telescopic and mill-type designs, selecting the correct welded cylinder type ensures higher efficiency, longer service life, and reduced maintenance costs.
We also providing various types of Hydraulic Power Pack Machines in Pune Types of power pack includes Electric Hydraulic Power Pack Machines, Portable Hydraulic Power Pack Machines, Industrial Hydraulic Power Pack Machines,Heavy Duty Hydraulics Power Packs , VMC Power Packs, Construction Power pack machine in pune etc.
Frequently Asked Questions – Welded Type Hydraulic Cylinders
What are welded type hydraulic cylinders?
Welded type hydraulic cylinders are compact and high-strength cylinders where the barrel is welded directly to the end caps, providing durability and better performance in heavy duty applications.
What are the advantages of welded hydraulic cylinders?
Welded hydraulic cylinders offer higher strength, compact design, better pressure handling capability and improved resistance to harsh working conditions.
Do you manufacture customized welded hydraulic cylinders in Pune?
Yes, welded type hydraulic cylinders are manufactured as per bore size, stroke length, mounting type and pressure requirements for various industrial applications.
Which industries use welded type hydraulic cylinders?
Welded hydraulic cylinders are widely used in construction equipment, material handling machinery, industrial automation systems and heavy duty applications.
-
