Flange And Side Lugs Mountings Manufacturers in Pune

Are you looking for trusted Flange And Side Lugs Mountings Suppliers/Dealers in Pune ?

Looking for Flange And Side Lugs Mountings in Pune? We are a leading manufacturer, supplier, and dealer of Flange And Side Lugs Mountings designed to deliver high-pressure performance for industrial and mobile applications.

Delight Hydraulic india.Tottaly Professional With Product Quality. we have Trained workers who are ready to provide 24/7 support. strict supervision of our skilled professionals. Whether you're in Pune,Maharashtra,India, we ensure fast delivery and on-site support for bulk orders.

Selecting the correct mounting style is essential for maximizing the performance, safety, and lifespan of hydraulic cylinders. Among the most widely used fixed mounting configurations are Flange Mountings and Side Lug Mountings. Both provide strong structural support, but each is designed for specific load directions and application requirements. This comprehensive guide explains flange and side lug mountings, their types, advantages, applications, installation considerations, and how to choose the right option for your hydraulic cylinder series.

Types of Flange Mountings

Best for:

• ✅ • Tension loads (pull applications)
• ✅ • Direct force transfer along centerline

Advantages:

• ✅ • Excellent alignment accuracy
• ✅ • Strong resistance to tensile forces
• ✅ • High rigidity

Common Applications:

• ✅ • Hydraulic press systems
• ✅ • Clamping machines
• ✅ • Industrial forming equipment

Rear Flange Mount (Cap Flange)

The flange is attached to the cap end of the cylinder.

Best for:

• ✅ • Compression loads (push applications)
• ✅ • Stationary base mounting

Advantages:

• ✅ • Strong support for compressive loads
• ✅ • Reduced rod deflection
• ✅ • Stable and durable installation

Common Applications:

• ✅ • Compactors
• ✅ • Lift systems
• ✅ • Heavy machinery

Advantages of Flange Mountings

• ✔ High structural strength
• ✔ Precise centerline alignment
• ✔ Excellent for heavy-duty operations
• ✔ Suitable for high-pressure systems
• ✔ Minimal side movement

Because flange mounts are rigidly fixed, they help prevent unwanted motion and ensure consistent cylinder performance.

Where We Supply

We deliver Flange Mountings Industrial Projects in:Pune, Pimpri-Chinchwad, Chakan, Talegaon, Bhosari, Ranjangaon MIDC, Nashik, Aurangabad, Mumbai, Kolhapur and other parts of Maharashtra & India.

What Is Side Lug Mounting?

Side lug mounting (also called foot mounting) involves welded or bolted lugs attached to the sides of the cylinder barrel. These lugs are bolted to a base plate or machine frame.Unlike flange mounting, side lugs position the mounting surface slightly off the cylinder’s centerline

Structure of Side Lug Mounting

• • Welded steel plates
• • Machined mounting tabs
• • Positioned symmetrically on the barrel

Advantages of Side Lug Mountings

• ✔ Easy installation
• ✔ Cost-effective
• ✔ Suitable for static applications
• ✔ Simple structural integration
• ✔ Good for medium-duty systems



Why Choose Us?

• ✅ In-house Design & manufacturing Facility
• ✅ High-Quality Material Used
• ✅ On-Site Installation & Commissioning Support
• ✅ 24×7 Service & AMC Available
• ✅ Quick Delivery in Pune, PCMC, Chakan, Ranjangaon, Talegaon, Maharashtra



Applications of Flange and Side Lug Mountings

Flange Mounting Applications
• • Industrial press machines
• • Heavy compaction systems
• • Structural forming equipment
• • High-force hydraulic systems
• • Automation requiring precise alignment

Side Lug Mounting Applications
• • Packaging machinery
• • Conveyor systems
• • Light to medium-duty automation
• • General manufacturing equipment
• • Agricultural implements



Flange and Side Lug Mountings are both effective fixed mounting solutions for hydraulic cylinders, but they serve different operational needs. Flange mounting offers superior strength, precise alignment, and high-load capacity — making it ideal for heavy industrial systems.

Side lug mounting provides a simple, economical, and easy-to-install solution for medium-duty and static applications. Understanding your load direction, pressure requirements, and installation constraints will help you choose the most suitable mounting style. Selecting the correct configuration ensures optimal cylinder performance, improved safety, and longer operational life for your hydraulic system. If you’re designing or upgrading hydraulic equipment, evaluating flange and side lug mounting options carefully will lead to better efficiency and long-term reliability.

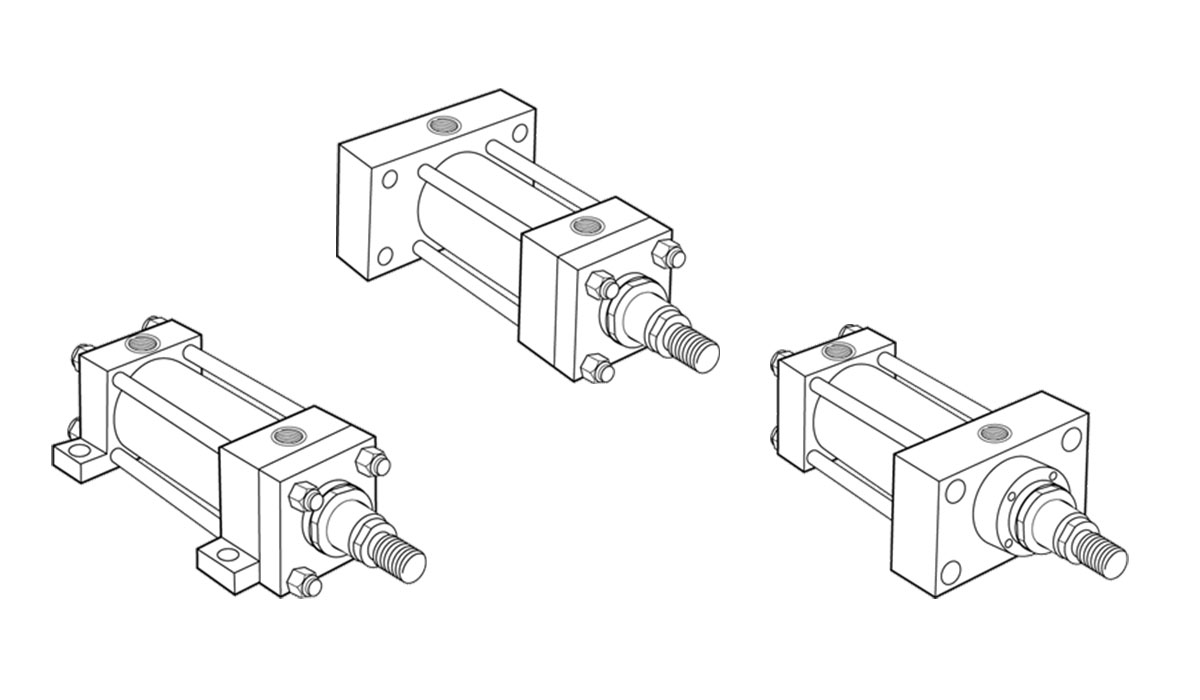

Our flange And Side Lungs Mountings Range



ME6 Cap Rectangular Flanges



ME5 Head Rectangular Flanges



MS2 Side Lug Mountings





We also providing various types of Hydraulic Power Pack Machines in Pune Types of power pack includes Electric Hydraulic Power Pack Machines, Portable Hydraulic Power Pack Machines, Industrial Hydraulic Power Pack Machines,Heavy Duty Hydraulics Power Packs , VMC Power Packs, Construction Power pack machine in pune etc.

Frequently Asked Questions – Flange and Side Lugs Mountings Hydraulic Cylinders

What are flange mounted hydraulic cylinders?

Flange mounted hydraulic cylinders are designed with flanges at the head or cap end, providing strong and rigid mounting support for heavy duty industrial applications.

What are side lugs mounting hydraulic cylinders?

Side lugs mounting hydraulic cylinders feature mounting lugs welded on the side of the cylinder barrel, allowing secure installation in machinery and structural frames.

Do you manufacture customized flange and side lugs mounted cylinders in Pune?

Yes, flange and side lugs mounted hydraulic cylinders are manufactured as per bore size, stroke length, pressure rating and specific industrial application requirements.

Which industries use flange and side lugs mounting cylinders?

These cylinders are widely used in construction equipment, material handling systems, industrial machinery, automation systems and heavy duty applications.
