Extended Tie Rod Mountings Pune
Extended Tie Rod Mountings Manufacturers in Pune
Are you looking for trusted Extended Tie Rod Mountings Suppliers/Dealers in Pune ?
Looking for a reliable Extended Tie Rod Mountings Suppliers/Dealers in Pune? We are a leading manufacturer, supplier, and dealer of Extended Tie Rod Mountings designed to deliver high-pressure performance for industrial and mobile applications.
Delight Hydraulic india.Tottaly Professional With Product Quality. we have Trained workers who are ready to provide 24/7 support. strict supervision of our skilled professionals. Whether you're in Pune,Maharashtra,India, we ensure fast delivery and on-site support for bulk orders.
Extended tie rod mountings are a widely used and highly reliable mounting style in hydraulic cylinder design. They provide a strong, secure, and cost-effective method for installing tie-rod cylinders in industrial machinery and automation systems.This detailed guide explains what extended tie rod mountings are, their types, advantages, applications, and how to select the right configuration for your hydraulic cylinder series
What Are Extended Tie Rod Mountings?
Extended tie rod mountings are a variation of standard tie-rod hydraulic cylinders in which the tie rods extend beyond the end caps. These extended rods allow the cylinder to be mounted directly to a machine frame using nuts, plates, or brackets. Instead of adding welded flanges or side lugs, the extended tie rods themselves act as mounting supports. This design simplifies installation while maintaining structural integrity
How Extended Tie Rod Mounting Works
A typical tie-rod hydraulic cylinder consists of
- ✅ Cylinder barrel
- ✅ Front head
- ✅ Rear cap
- ✅ Tie rods
- ✅ Piston and piston rod
In extended tie rod mounting, the tie rods are manufactured longer than the cylinder body. The extra rod length allows attachment through mounting holes or structural supports.When secured with high-strength nuts, the tie rods hold the cylinder firmly in position, ensuring proper alignment and load distribution.
Where We Supply
We deliver Extended Tie Rod Mounting to Industrial Projects in:Pune, Pimpri-Chinchwad, Chakan, Talegaon, Bhosari, Ranjangaon MIDC, Nashik, Aurangabad, Mumbai, Kolhapur and other parts of Maharashtra & India.

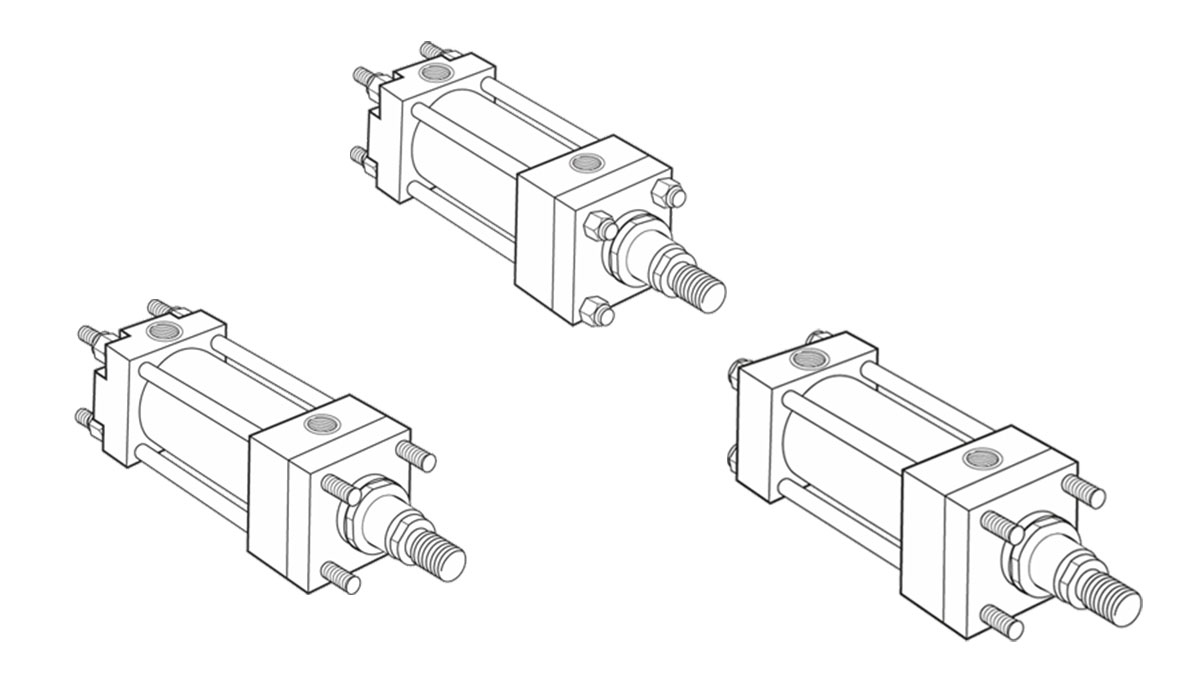

Types of Extended Tie Rod Mountings
Extended tie rod mountings are available in several configurations depending on the mounting location and load direction.
Extended Tie Rod – Both Ends
In this configuration, tie rods extend beyond both the front head and rear cap.
Features:- ✅ • Symmetrical design
- ✅ • Balanced mounting
- ✅ • Strong structural support
- ✅ • Industrial presses
- ✅ • Heavy automation systems
- ✅ • Assembly lines
- ✅ • Even load distribution
- ✅ • Reduced bending stress
- ✅ • High rigidity
Extended Tie Rod – Cap End Only
Tie rods extend only at the rear (cap) end of the cylinder.
Features:- ✅ • Rear fixed mounting
- ✅ • Front rod end remains free
- ✅• Push-type applications,/
- ✅• Machine tool systems
- ✅• Straight-line motion systems
- ✅• Stable rear support
- ✅• Easy installation
Extended Tie Rod – Head End Only
Tie rods extend beyond the rod end (front head).
Features:- ✅• Front mounting support
- ✅• Suitable for pull applications
- ✅• Clamping systems
- ✅• Tension-based operations
- ✅• Direct force alignment
- ✅• Compact rear setup
Why Choose Us?
- ✅ In-house Design & Manufacturing Facility
- ✅ High-Quality material Used
- ✅ On-Site Installation & Commissioning Support
- ✅ 24×7 Service & AMC Available
- ✅ Quick Delivery in Pune, PCMC, Chakan, Ranjangaon, Talegaon, Maharashtra
Applications of Extended Tie Rod Cylinders
- • Factory automation
- • Packaging machinery
- • Injection molding machines
- • Hydraulic press equipment
- • Conveyor systems
- • Clamping and forming systems
When to Choose Extended Tie Rod Mounting
Extended tie rod mountings are the best choice when:
- • You need easy servicing
- • The application involves straight-line motion
- • Space constraints require compact mounting
- • Medium to heavy loads are involved
- • Cost efficiency is important
Extended tie rod mountings offer a practical, strong, and economical solution for mounting hydraulic cylinders in industrial systems. By extending the tie rods beyond the cylinder body, manufacturers can create a secure and stable installation without additional welded brackets. Available in head-end, cap-end, or both-end configurations, extended tie rod mountings provide flexibility for various load directions and machine designs. When properly aligned and maintained, they deliver long service life, consistent performance, and reliable operation. For businesses seeking durable and service-friendly hydraulic cylinder mounting solutions, extended tie rod mountings remain a proven and efficient choice.
Our Extended Tie Rod Mountings Range
We also providing various types of Hydraulic Power Pack Machines in Pune Types of power pack includes Electric Hydraulic Power Pack Machines, Portable Hydraulic Power Pack Machines, Industrial Hydraulic Power Pack Machines,Heavy Duty Hydraulics Power Packs , VMC Power Packs, Construction Power pack machine in pune etc.
Frequently Asked Questions – Extended Tie Rod Mountings Hydraulic Cylinders
What are extended tie rod mounted hydraulic cylinders?
Extended tie rod mounted hydraulic cylinders use tie rods extended beyond the cylinder body to provide secure mounting and structural stability in industrial applications.
What are the benefits of extended tie rod mountings?
Extended tie rod mountings provide strong alignment, easy installation, improved structural strength and reliable performance in high pressure and heavy duty applications.
Do you manufacture customized extended tie rod hydraulic cylinders in Pune?
Yes, extended tie rod mounted hydraulic cylinders are manufactured as per bore size, stroke length, mounting configuration and pressure requirements.
Which industries use extended tie rod mounted hydraulic cylinders?
These cylinders are widely used in construction equipment, material handling systems, industrial machinery, automation systems and heavy duty applications.
-
